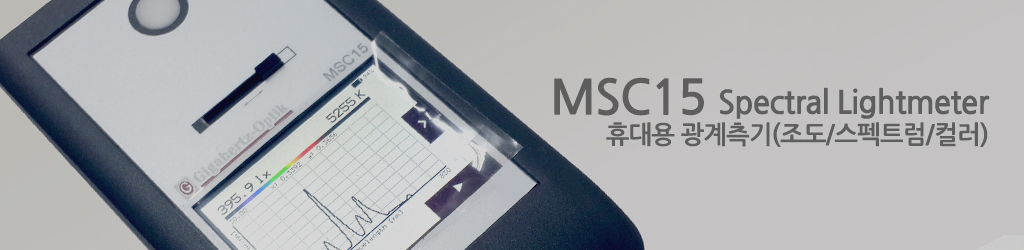

MSC 15
휴대용 광계측기 LED lighting measurements

사이즈 136 mm x 74 mm x 32 mm
무   게 160 g
제조사 Gigahertz-Optik GmbH
원산지 독일


MSC 15 휴대용 광계측기 특징

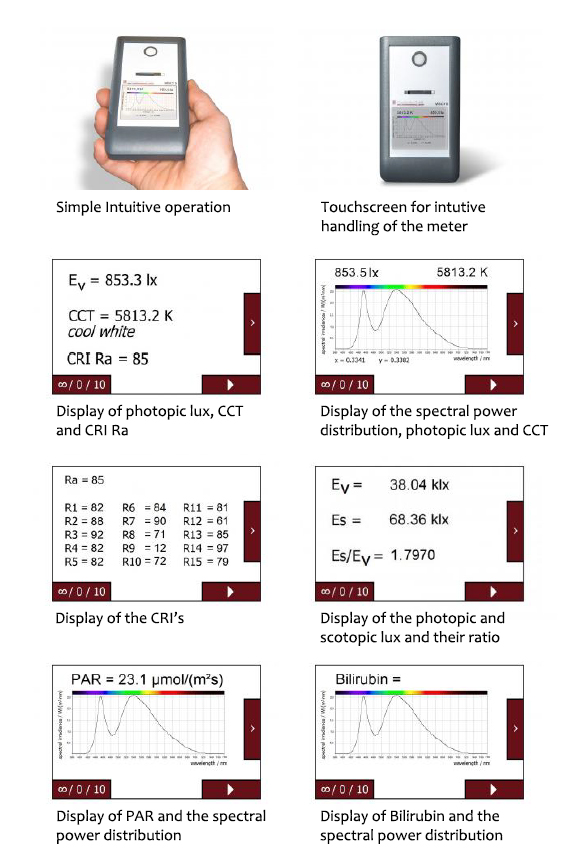

- 컬러 터치스크린 방식으로 높은 사용 편의성
- 조도 (Scotopic, Photopic), 분광 조도, 스펙트럼 분포도, 색좌표(x,y), CCT, CRI, PAR, Bilirubin 측정 가능
- 컴팩트한 디자인
- 경제적인 가격

Specifications
Measurement Quantities Illuminance photopic
Illuminance scotopic
Spectral Irradiance
Color coordinates (x,y)
CCT
CRI (color rendering index)
PAR
Bilirubin
Entrance Optic Diffuser window with 10mm diameter,
cosine corrected field of view, f2 ≤ 3 %
Spectral Detector
Wavelength Range 360 - 830 nm
Optical Bandwidth 180 module
Measurement Range 1 - 350000 lx
Δx, Δy reproducibility +/- 0.0002
Δx, Δy uncertainty +/- 0.002 (Standard illuminant A)
CCT Measurement range 1700 - 17000 K
ΔCCT +/- 50K (standard illuminant type A)
+/- 4% (depending on the LED spectrum)
Calibration
Calibration uncertainty Illuminance (standard illuminant A) +/- 3%
Illuminance (typ. LED) +/- 4%
(Traceable to national standard. Uncertainty of the standard is included)
Miscellaneous
Interface USB 2.0
Temperature Range Operation: 10°C bis +30°C
Storage: -10°C to +50°C
Power rechargeable battery
minimum 8h of operation
Charging voltage 5VDC by USB
