Item Code	Description

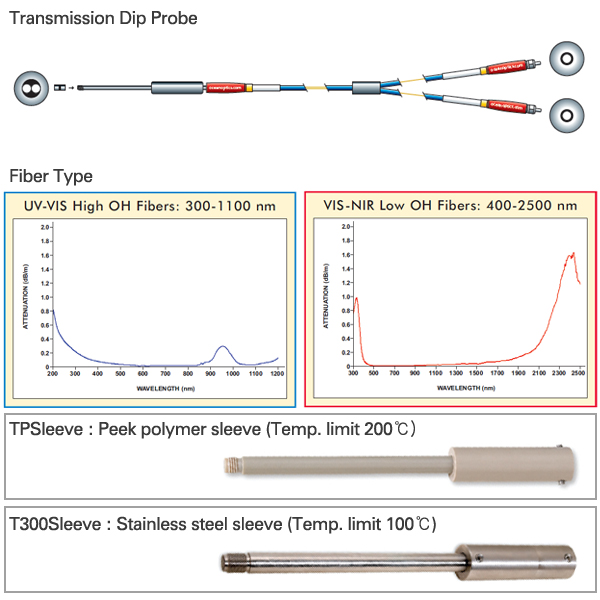

TP300-UV-VIS	Transmission Dip Probe with 300 µm diameter UV/SR optical fiber (200-1100 nm) in 6.35 mm diameter ferrule
TP300-VIS-NIR	Transmission Dip Probe with 300 µm diameter VIS-NIR optical fiber (400-2500 nm) in 6.35 mm diameter ferrule
T300SLEEVE	Transmission Dip Probe with 200 µm diameter VIS-NIR optical fiber (400-2500 nm) in 6.35 mm diameter ferrule
RTP-2-10	2~10 mm pathlength tip for T200-RT and T300-RT Transmission Probes
RTP-10-20	10~20 mm pathlength tip for T200-RT and T300-RT Transmission Probes
RT-PH	16 mm fix for pH pathlength tip for T200-RT and T300-RT Transmission Probes

Specifications
Fiber type	TP300-UV-VIS: 300 μm UV/SR optical fiber (200-1100 nm) TP300-VIS-NIR: 300 μm VIS-NIR optical fiber (400-2100 nm)
Outer diameter	3.175 mm diameter for internal stainless steel assembly, 6.35 mm with PEEK polymer sleeve
Probe length	107.9 mm
Fiber length	2 meters
Optics	Fused silica
Pathlength	Adjustable from 2-10 mm (the RTP-2-10) or from 10-20 mm (RTP-10-20) For RT-PH, fixed at 16 mm
Pressure limit	100 psi
Fiber jacketing	PVDF jacketing
Probe sleeve	Stainless steel internal assembly, PEEK for outer sleeve
Connector	SMA 905
Temperature limit	Up to 200℃ with PEEK sleeve
