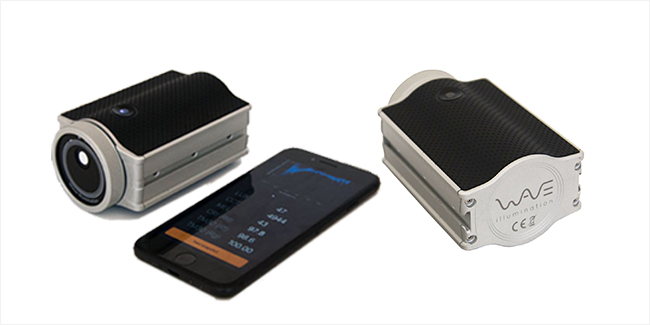

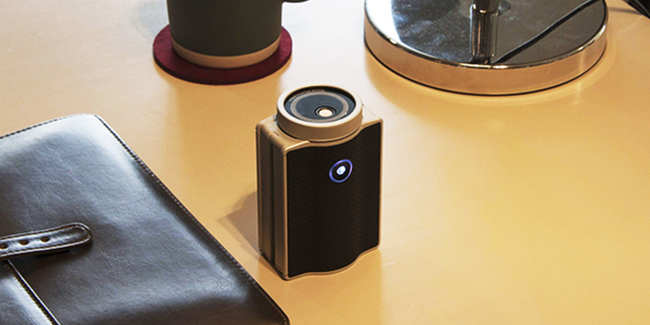

WaveGo
A complete, simple to use system for light measurement

Á¦Á¶»ç Ocean Optics Inc
¿ø»êÁö ¹Ì±¹



WaveGo Ư¡

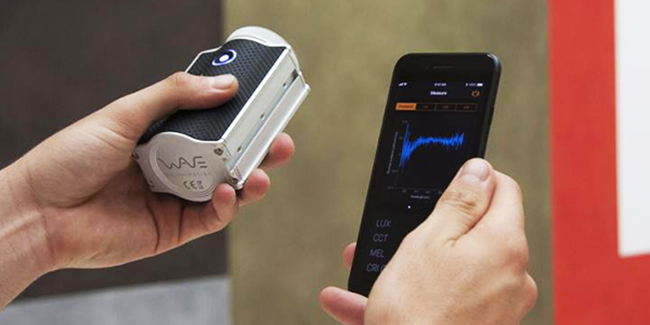

  • ½º¸¶Æ®Æù(iOS/Android ȣȯ) ±â¼ú°ú °áÇÕµÈ ÈÞ´ë¿ë ±¤ÃøÁ¤±â
  • ÃøÁ¤ Ç׸ñ: ºÐ±¤ºÐÆ÷(½ºÆåÆ®·³), Lux, CRI, CCT, PAR µî
  • 350~800nm, 10~1,000,000 lux
  • Cloud ÀúÀåÀ¸·Î µ¥ÀÌÅ͸¦ Àå¼Ò, ½Ã°£¿¡ ±¸¾Ö ¾øÀÌ È®ÀÎ °¡´É

Specifications
Optical Resolution: 3nm FWHM
Wavelength Range: 350-800nm
Illuminance Range: 10-1,000,000lux
x,y Repeatability: 0.005 @ 250lux
x,y Accuracy: 0.005 @ 250lux
Reliable Chromaticity: >10lux
Illuminance Accuracy: ¡¾4% @ 250lux
CCT Accuracy: ¡¾2%
Number of Pixels: 1024
Integration Time: 10µs-1s
SNR: 1500:1
Stray Light: 0.25%
